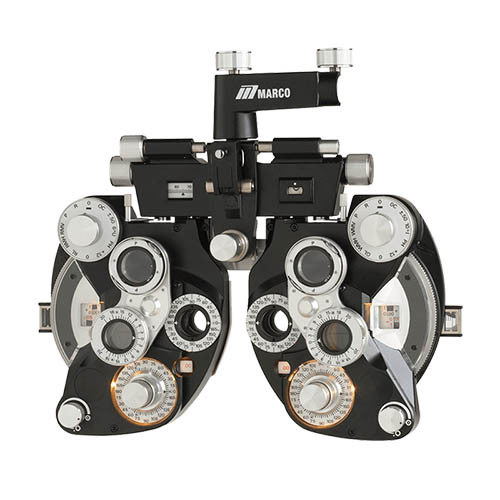

The Marco RT-700 LED Refractor features a distinctive, industry-recognized design combining certified Marco quality with a proven internal background illuminator. This manual refractor meets the needs of the traditional practice with continuously adjustable illumination for sphere, cylinder, and axis measurement. Fully synchronized axis/cross-cylinder, and white prism/cross cylinder scales aid function and visibility. All supported by a standard 5-yr warranty.
FEATURES
- Classic Design – With the RT-700, Marco has continued its long-standing tradition of utilizing the very best materials and craftsmanship to construct a superior, high-quality vision diagnostic instrument that doctors have come to expect from Marco products.
- Continuously Adjustable LED – The LED illumination system features infinitely adjustable illumination for sphere, cylinder, and axis measurements.
- High Performance Optics – The RT-700 features white prism, accessory, and cross-cylinder scales to provide easier recognition in dim lighting conditions. A fully-synchronized axis / cross-cylinder system provide reliable measurements.
- Auxiliary Lens Dial – Open aperture, Retinoscopic lens, Polarizing lens, White Maddox rod, Red Maddox rod vertical/horizontal, Red Maddox rod, Red lens, Green lens, +0.12 sphere, Pin hole, (10∆l) or (6∆U), 6 base-up, Occluder
- User Friendly Features – A functional “wing-grip” design provides easier maneuverability of the refractor head. Soft, smooth knurled knobs provide consistent, effortless adjustments.
SPECIFICATIONS
| Sphere Power Range | +16.75 to –19.00 diopters |
|---|
| Step | 0.25 diopters |
|---|
| Cylinder Power Range | 0.00 to ±6.00 diopters 0.00 to ±8.00 diopters with additional lens of ±2.0 diopters) |
|---|
| Cylinder Axis | 0 to 180º, 5º steps |
|---|
| Cross Cylinder | ±.25 diopter, selectively synchronized with cylinder axis |
|---|
| Rotary Prisms | 0∆ to 20∆ , 1∆ steps |
|---|
| Auxiliary Lens Dial | (O) – Open aperture (two positions) (R) – Retinoscopic lens, +1.50D (P) – Polarizing lens 45º left eye, 135º right eye (WMV) White Maddox rod, vertical (RMV) Red Maddox rod, vertical (WMH) White Maddox rod, horizontal (RMH) Red Maddox rod, horizontal (RL) – red lens (GL) – green lens (+.12) – +0.12 sphere (PH) –Pin hole (10 l) or (6 U) – 10 base-in – left eye 6 base-up – right eye (Disassociating prisms) (±.50) – ±0.50 fixed cross cylinder (OC) – Occluder |
|---|
| PD Adjustment | 48 – 75mm, 1mm steps |
|---|
| Convergence Adjustment | Infinity to 400mm |
|---|
| Forehead Rest Adjustment | 16mm |
|---|
| Vertex Distance | 13.75mm from apex of cornea |
|---|
| Measurements | 344 (W) x 488 (D) x 907 (H) mm
13.54(L) x 3.78(W)x 12.01(H) in |
|---|
| Mass (Approximate) | 4.44 kg, 9.79 lbs |
|---|
| Standard Accessories | Allen wrench, nearpoint card, nearpoint card holder, power transformer, accessory lens set, reading rod, face shields, dust cover, power cord tube, power cord clips |
|---|
| Optional Accessories | Patient face shield with plano cover lens |
|---|
