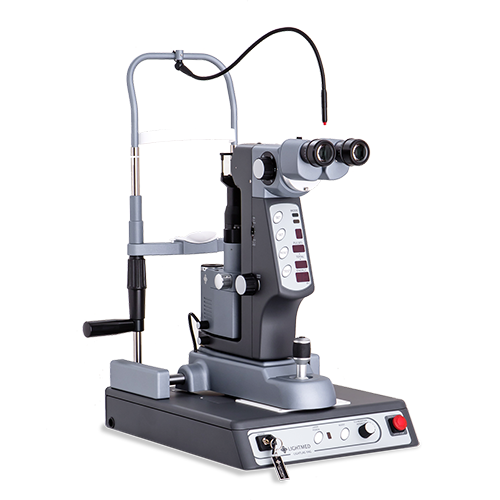

The LIGHTMED LIGHTLas YAG-V laser adds vitreolysis functionality and is a powerful multi-purpose anterior and posterior workstation. Additionally, LIGHTMED lasers feature a unique modular design so you can add Selective Laser Trabeculoplasty (STL) or photocoagulation at any time.
Also available with optional green aiming beam – SKU: LTM-YAG-VG
FEATURES:
- Twin Aiming Focusing System
- Superior Crystal-Q Switch Laser Cavity
- Slit Lamp Integrated System
- 5 Step Magnification Changer
- ± 500 µm YAG posterior/anterior offset
- Wide Field Optics
- Selective Laser Trabeculoplasty (SLT) mode upgradeable
- Combo Upgradeability
- Auto Calibration Mode
- Vitreolysis System
SPECIFICATIONS:
- Laser type: Crystal Q-switched Nd:YAG
- Wavelength: 1064 nm
- Energy range: 0.2 to ≤ 15 mJ (in single pulse mode), 10 to ≤ 25 mJ (in double pulse mode), 20 to ≤ 45 mJ (in triple pulse mode)
- Pulse width: 4 nanoseconds
- Treatment spot size: 8 μm
- Burst mode: 1, 2, or 3 pulses each burst; selectable
- Mode structure: Fundamental; diffraction limited
- Average air breakdown: ≤ 2.1 mJ; ≤ 1.5 mJ (in liquid solution)
- Cone angle: 16°
- Treatment beam offset range: ±500 μm; continuously variable
- Laser repetition rate: Up to 3.0 Hz (single pulse); up to 2.3 Hz (double pulse); up to 2 Hz
- (triple pulse)
- Aiming beam: Dual beam laser diode; continuous wave (CW); 635 nm (red)
- Magnification: Integrated 5-position: 5x, 8x, 14x, 25x, and 38x
- Cooling: Air convection; passive
- Dimensions: 72 cm (L) x 54 cm (W) x 54 cm (H)
